Plastic Profile Extrusion Machine

Our Plastic Profile Extrusion Machine is tailored for manufacturing high-precision plastic profiles used in windows, doors, and other construction applications. These machines provide excellent output quality and versatility, making them suitable for various materials and designs. By leveraging advanced extrusion technology, we ensure superior product performance. Check our Plastic Auxiliary Equipment section for more information.

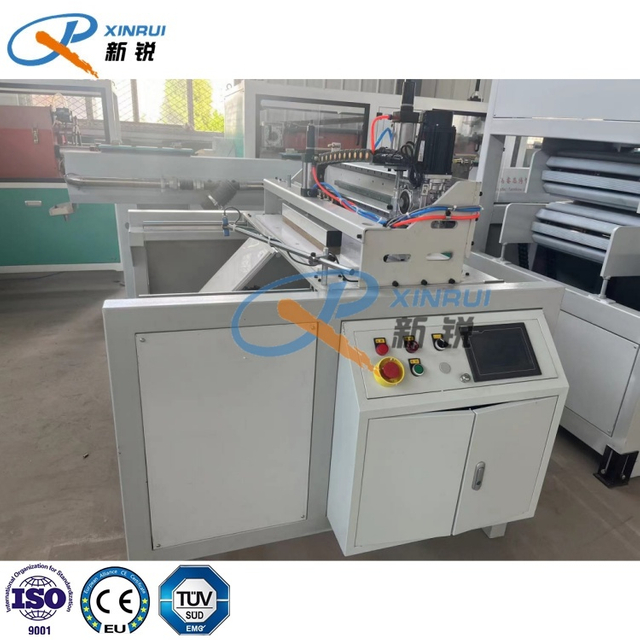

1. PVC Ceiling Panel/Wall Panel Making Machine

Applicable Raw Materials: PVC + CaCO₃ (40–250 phr) + Stabilizer + Foaming Agent (Optional)

Product Specifications: Width 200–600 mm, Thickness 6–12 mm (Hollow or Solid), Compatible with Online Thermal Transfer Printing, Lamination, and UV Coating

Core Configuration:

SJZ65/132 or SJZ80/156 Cone Dual Main Machine, Output 150–350 kg/h

Coat-Hanger Wide-Width Die + Foaming/Co-extrusion Distributor, Capable of Multi-Layer Micro-Foaming

12–16 m Vacuum Forming Table with Caterpillar Traction, Straightness ≤ 0.5 mm/m

Automatic Cut-to-Length Cutting + Dust-Free Laminating Machine, Online Lamination of PVC/PET/ASA Decorative Films

Technical Highlights:

Low Foaming Density 0.45–0.7 g/cm³, Saving 20% of Material; Switchable by Replacing the Mandrel

30 Applications: Integrated ceilings, quick-install wall panels, bathroom partitions, and background walls

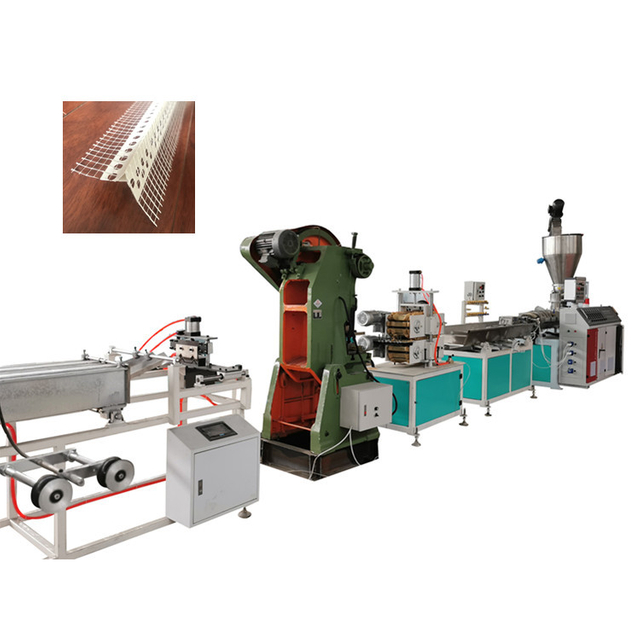

2. PVC Corner Bead/Angle Bead Making Machine

Applicable Materials: Rigid PVC, a small amount of impact modifier, can be co-extruded with a colored ASA layer.

Product Specifications: Edge width 20–50 mm, thickness 0.8–1.5 mm, with multiple reinforcing ribs and mesh grooves.

Core Configuration:

SJZ45/90 or SJZ51/105 cone dual-core machine, output 80–150 kg/h.

High-speed 3–6 m vacuum shaping die + precision crawler traction, traction speed 10–25 m/min.

Online punching (nail hole) + thermal transfer, capable of producing colorful patterns in one pass.

Technical Highlights:

Dimensional tolerance ±0.05 mm, right-angle strength ≥35 MPa; die change for various angles (90°/135°/arc) within 10 minutes.

Applications: Gypsum board corner protectors, exterior wall insulation drip lines, integrated wall panel external corner strips.

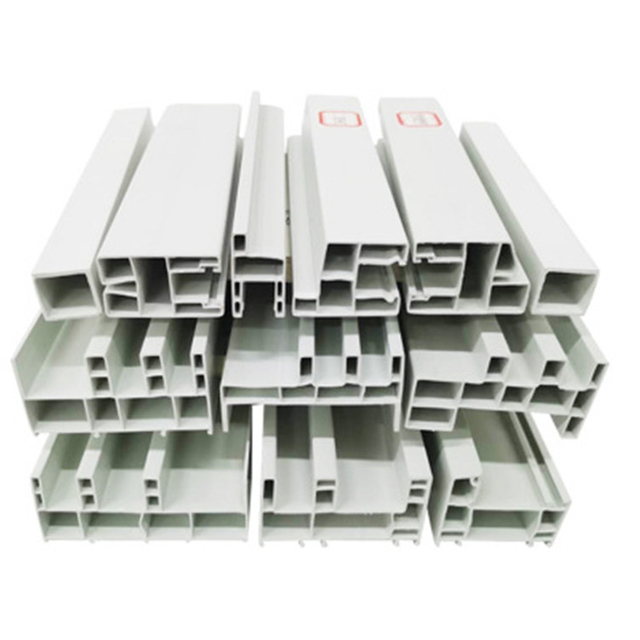

3. UPVC / PVC Window & Door Profile Making Machine

Applicable Raw Materials: UPVC powder (K=65–68) + Ca/Zn or organic tin stabilizer + TiO₂, impact-resistant ACR

Product Specifications: 60/65/70/80/88 mm, European/Chinese standard multi-cavity structure, wall thickness 1.8–3.0 mm

Core Configuration:

SJZ65/132 or SJZ80/156 cone dual-core machine, output 200–450 kg/h

Coextrusion die (two-color/soft and hard coextrusion/steel-lined cladding) + 18–24 m vacuum profiling table with independent vacuum zones

Synchronous crawler traction + laser thickness/bend measurement, closed-loop vacuum control, straightness ≤0.3 mm/m

Fully automatic chipless cutting + 3D material transfer rack, capable of applying protective film, inkjet coding, and laser marking

Technical Highlights:

Weld fillet strength ≥45 MPa, glossy surface 60° value 25–35 GU; line speed 0.8–4 m/min, annual production capacity 8,000–15,000 tons

Applications: Energy-saving door and window frames, curtain wall moldings, sliding rails, balcony railings

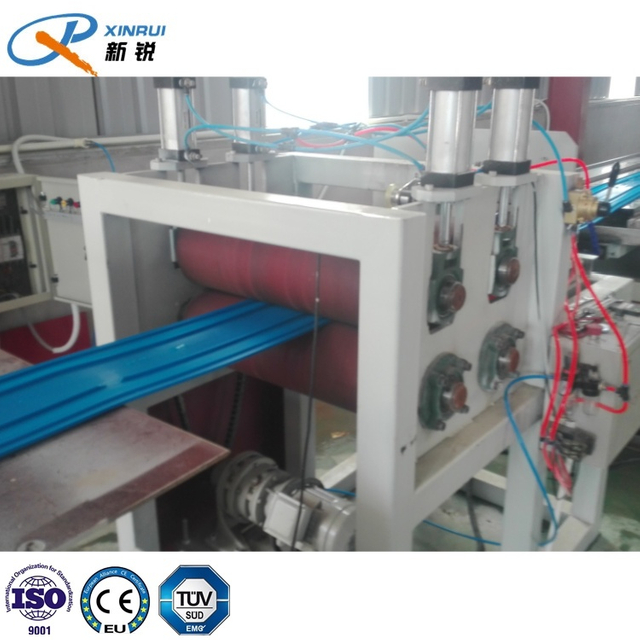

4. PVC Waterstop Making Machine

Applicable Materials: Highly elastic modified PVC, nitrile rubber powder, ultrafine CaCO₃. Requires acid and alkali resistance, and resistance to 0.4 MPa water pressure.

Product Specifications: Center ball diameter 6–40 mm, rib height 20–60 mm, width 150–350 mm, with internal steel edges possible.

Core Configuration:

SJZ80/156 cone dual-core machine, output 250–400 kg/h

Specialized screw with high compression ratio and low shear, melt temperature ≤185°C to prevent pre-crosslinking

12 m vacuum forming machine + cooling water tank, crawler traction, traction speed 1–3 m/min

Online drilling (for mounting holes) + cut-to-length cutting, capable of co-extrusion of color identification strips

Technical Highlights:

Tensile strength ≥14 MPa, elongation at break ≥350%, low-temperature bending qualified at -30°C; die change within 30 minutes

20 Applications: Waterstops for expansion joints in subways, tunnels, dams, and reservoirs

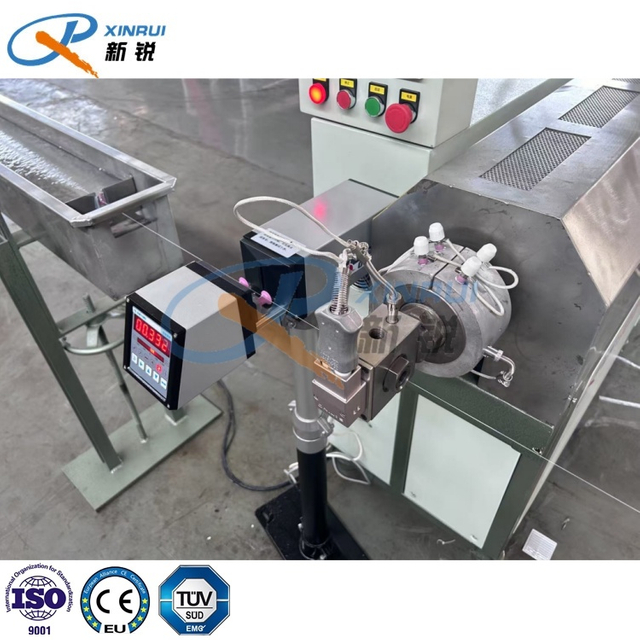

5. PVC Yarn Coating Making Machine

Applicable Materials: Soft PVC, TPU, EVA; flame-retardant/UV-resistant masterbatch can be added.

Product Specifications: 0.5–3.0 mm monofilament/multi-strand yarns, coating thickness 0.1–0.8 mm, line speed 80–200 m/min.

Core Configuration:

SJ45/30 or SJ65/30 single-screw extruder with high-temperature melt pump, output 60–150 kg/h.

Cross-head/multi-hole die, capable of coating 32–120 yarns simultaneously, with adjustable center height.

Two-stage hot water/hot air curing tank, gel content control of 65–75%.

Online laser diameter measurement + servo take-up, constant tension 0.5–5 N.

Technical Highlights:

Concentricity ≥90%, coating adhesion ≥15 N/25 Can produce luminous, fluorescent, and metallic colored yarns.

Applications: Artificial turf, fishing line, tarpaulin reinforcement, curtain tassels, and industrial filter fabric skeletons.

Plastic profile machines are developing towards "high filling, low foaming, multi-cavity co-extrusion, in-line surface treatment, and AI closed-loop dimensional control":

Foamed wall panels/ceiling lines emphasize lightweighting, thermal insulation, and integrated decoration;

Door and window lines emphasize high weld angle strength and integrated intelligent packaging;

Waterstop lines require ultra-large cross-sections, high elasticity, and chemical resistance;

Yarn-wrapped lines demand high speed, multiple strands, and precise concentricity.

When selecting a model, users should comprehensively consider the raw material formula (calcium powder filling ratio, foaming ratio), cross-sectional complexity, product standards (GB/T 8814, EN 12608, TB/T 3360, etc.), downstream secondary processing requirements such as lamination, embossing, and perforation, as well as workshop length and cooling water quality. The optimal balance between production capacity and dimensional accuracy should be achieved by optimally matching the machine model, calibrating table length, traction force, and cutting method.
