Application
Home Improvement: Protect ceiling corners and right-angled door and window frames from impact;
Industrial Design: Protect corridor walls in hotels, hospitals, and schools from impact;
Infrastructure: Protect corners in subways, tunnels, and airport columns;
Furniture: Protect exposed corners on cabinets, wardrobes, and display cases;
Outdoor: Strengthen fence posts and billboard corners.
Product sizes
Height: 6mm, 8mm, 9mm, 10mm,12mm or as customized.
Thickness: 0.8-1.5mm
Length: 2.44M, 2.5M, 2.6M, 2.7M or as customized.
Machine description

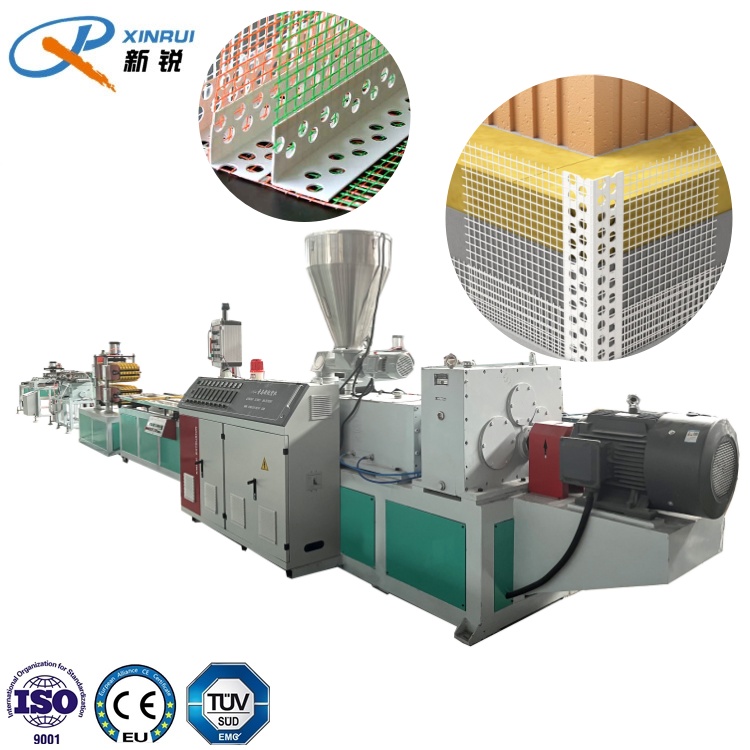

This PVC corner guard extrusion equipment completes the entire process of turning "powder" into "rigid small steel rails" in one go: the 55/65mm nitrided screw main unit plasticizes at high speed at a 22:1 aspect ratio, a four-way split die ensures that the flow error of each corner strip is less than 2%, a 4-meter stainless steel vacuum box with a two-stage spray allows the profile to be instantly shaped and the size to be stable to ±0.1mm, the crawler servo traction is steplessly adjustable at 8-15m/min, the online pneumatic punching is 0.6MPa, and the hole spacing can be switched from 50-150mm with one button, and the servo flying saw cuts with high precision. The ±1mm end face is smooth and burr-free. The total frequency conversion power of the whole machine is only 45kW, but it is as low as 220 kWh/ton of material. The compact 15-meter layout can be placed in an L shape. The temperature automatically rises by scanning the formula QR code. Color co-extrusion or embossing upgrades can be completed in 30 minutes. The vacuum box quick-release cover and the Cr12 blade quick-change structure allow maintenance without tools. The produced corner strips have built-in reinforcement ribs and anti-collision textures. They will not crack when dropped from 1.5 meters at room temperature and will not leave white marks when folded in half at -10℃, truly achieving the high-speed, low-energy consumption, and fool-proof operation experience of "production and packaging at the same time".
Equipment Features:
High Capacity: This equipment utilizes advanced extrusion technology for high production efficiency, enabling rapid and stable production of various sizes of corner moldings, meeting large-scale production needs.
Precise Dimensional Control: Equipped with a precise dimensional control system, this equipment ensures consistent dimensions of each corner molding, meeting industry standards.
Durability: Constructed of high-quality materials, this equipment boasts a sturdy and durable structure, ensuring long-term stable operation and minimizing malfunctions.
Intelligent Control System: Utilizing an advanced PLC automation control system, this equipment achieves fully automated production, streamlining operations and minimizing human error during production.
Energy Saving and Environmental Protection: This equipment features an energy-saving design, low energy consumption, high efficiency, and compliance with environmental standards, reducing production costs while minimizing environmental impact.
Versatility: This equipment can easily adapt to different molds and production processes to produce PVC corner moldings of various sizes and shapes to meet diverse market demands.
Applications:
Building Decoration: PVC corner lines are used in the decoration of indoor walls and ceilings, providing a perfect finishing effect and widely used in residential buildings, shops, offices, and other types of construction.
Home Decoration: Used for installing corner lines in areas such as living rooms, bedrooms, and kitchens to enhance the aesthetic appeal of interior designs.
Office Decoration: Ideal for decorating office walls and corners, enhancing both the aesthetic appeal and protection, preventing wear and tear on the corners.
Commercial Spaces: PVC corner lines effectively improve the overall decorative effect of commercial spaces, enhancing customer experience.
Other Decorative Applications: PVC corner lines are also used in various commercial and entertainment venue decorations, adding to the overall feel and design of the space.
After-Sales Service:
Professional Installation and Commissioning: Installation and commissioning services ensure smooth operation from the start of production.
Operator Training: Detailed training helps operators quickly master equipment operation skills.
Warranty: One-year warranty and free repairs ensure long-term stable operation.
Spare Parts Supply: Common spare parts are provided to ensure uninterrupted production.
Technical Support: Ongoing technical support to resolve any production issues and ensure a smooth production process.
