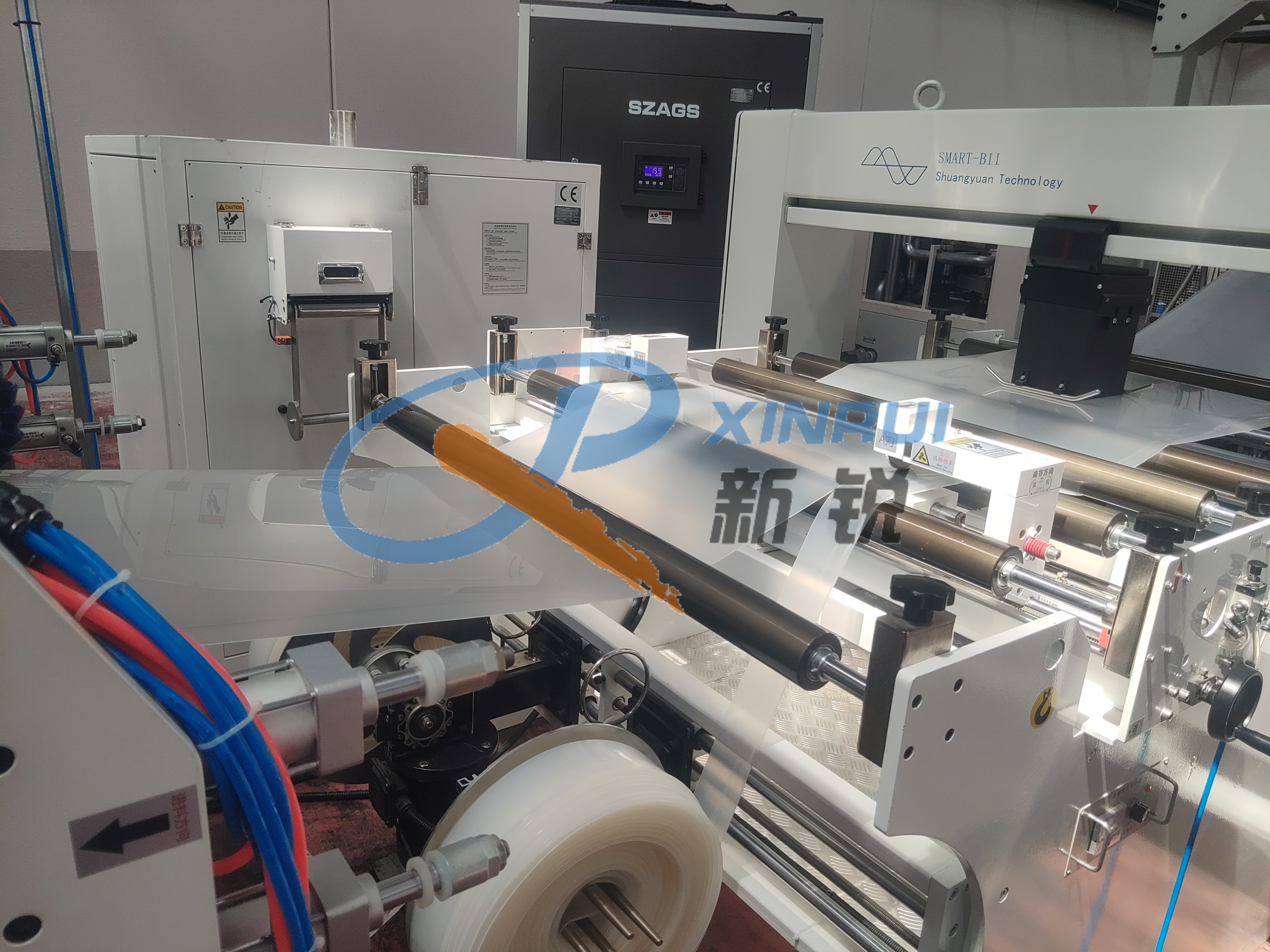

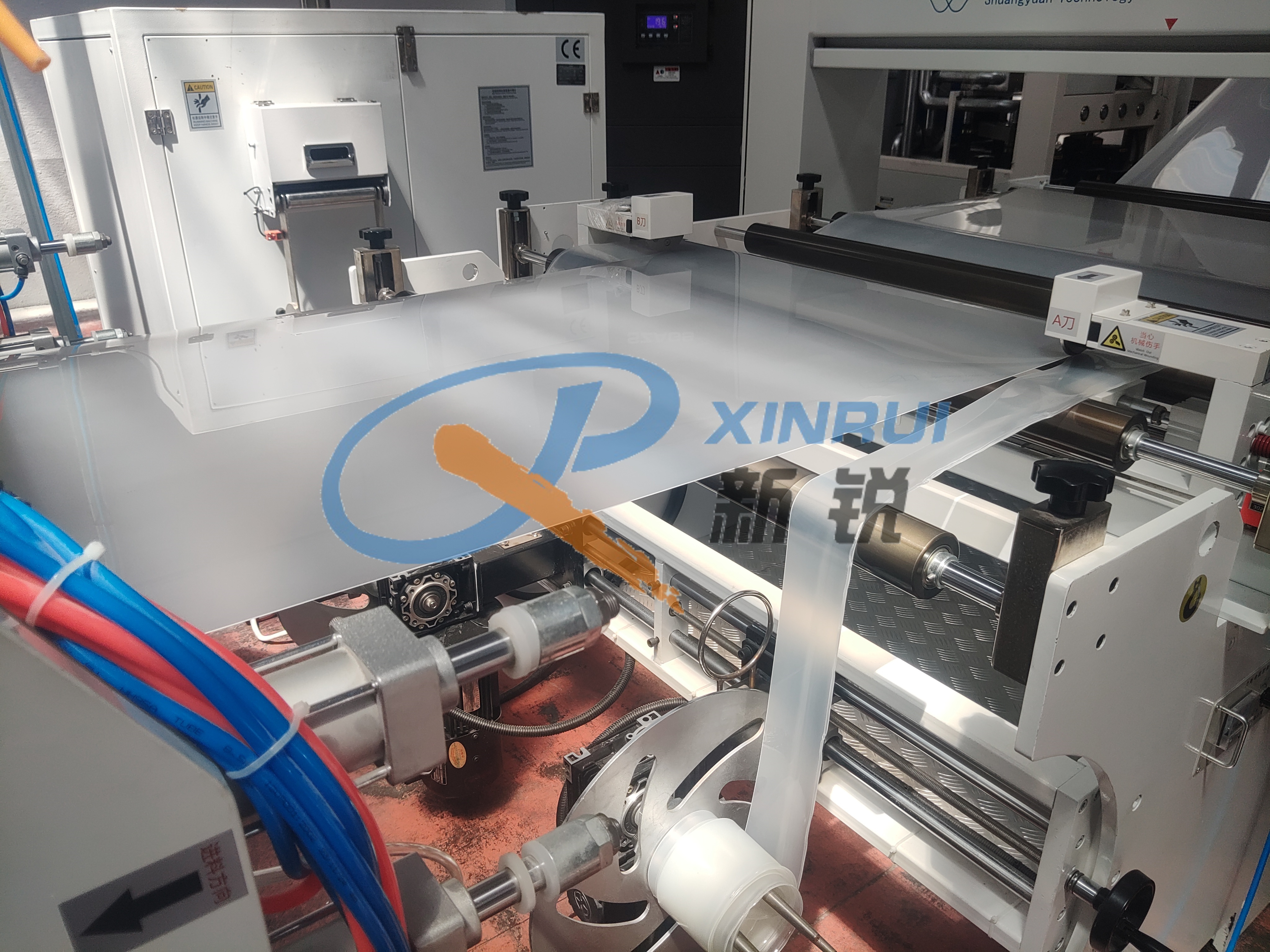

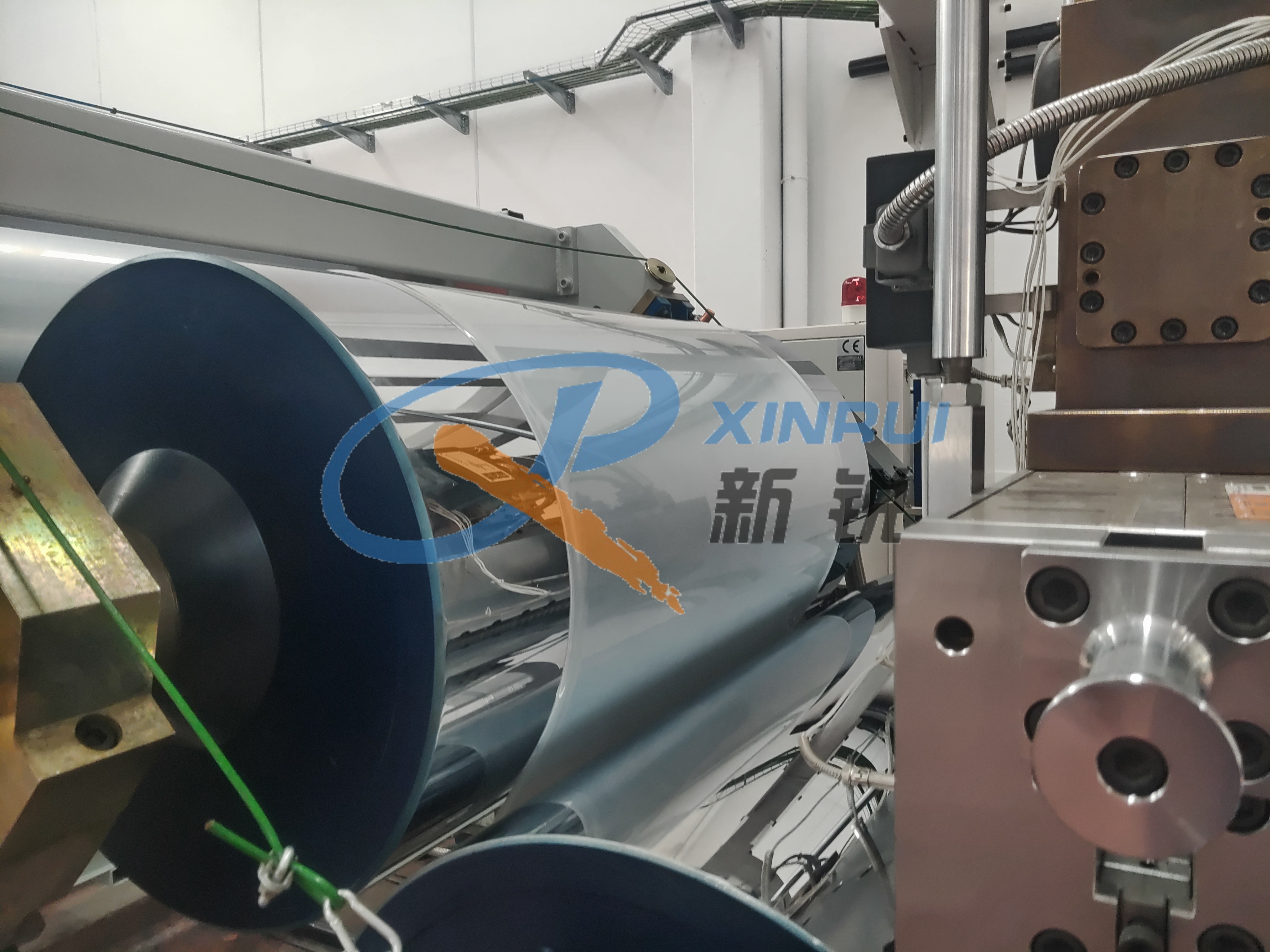

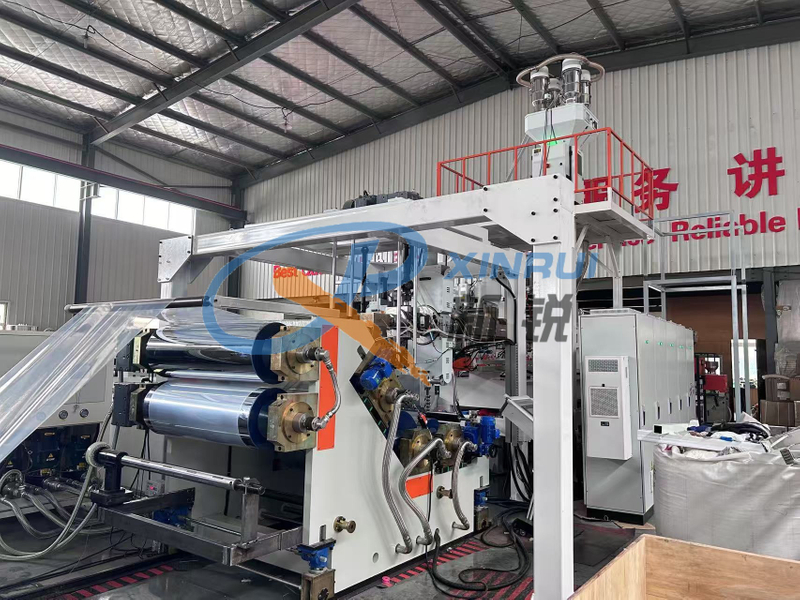

0.3-2mm PP PE PS Thermoforming Sheet Making Machine

Applications & Industry Solutions

PP Sheet Molding Machine Applications

Our PP sheet molding machine can produce polypropylene sheets for a wide range of applications, suitable for:

Chemical Industry: Corrosion-resistant equipment, chemically resistant pipelines, storage tanks

Food Processing: Food-grade packaging containers, industrial pallets, sanitary surface materials

Air Purification: Filter housing assemblies, cleanroom applications

Environmental Protection Equipment: Waste gas treatment systems, wastewater treatment components

PE Sheet Making Machine Applications

This polyethylene sheet production line excels in producing polyethylene sheets for the following applications:

-Chemical Industry: Corrosion-resistant storage tanks, chemical pipelines; Power Generation: Cable insulation and protective sheathing, electrical component housings;

-Mechanical Engineering: High-density polyethylene (HDPE) abrasion-resistant linings, mechanical parts;

-Chemical Equipment: Reactor linings, process equipment protection.

PS Sheet Making Machine Applications

Our ps sheet making machine produces polystyrene sheets ideal for:

• Consumer Electronics: Appliance housings, control panels, protective covers

• Electronics Manufacturing: Equipment enclosures, insulating barriers, component protection

• Premium Packaging: High-end gift boxes, electronic product packaging solutions

• Medical Equipment: Medical device housings, instrument panels, sterile barriers

Specialized Sheet Production

PP/PS Co-extruded Two-Color Transparent Sheets:

• Thermoforming Applications: Food service trays, beverage containers, disposable packaging

• Packaging Industry: Transparent display boxes, retail packaging solutions

PP Transparent & Colored Sheet Varieties:

• Office Supplies: File folders, document organizers, protective covers

• Stationery Products: Notebook covers, pen cases, educational materials

PP PE PS Sheet Size

Width:600-1200mm

Thickness:0.15-2mm

LDPE Sheet Making Machine List

Three headline benefits

1. One machine, any polymer – 30 min change-over
   Patented barrier screw + dual-flow T-die switches from 0.2 mm clear PP stationery to 2 mm PE food tray or 0.3 mm PS airline cup without screw or die swap.
2. Closed-loop intelligence – ≥99 % prime yield
   Triple-loop control: on-line gauge → melt pump → gravimetric feeder. Gauge, colour and pressure corrected in real time—no wavy edges, no black specks.
3. Zero waste – edge trim back in-line
   On-line granularor + pneumatic return conveys trim straight back to the hopper. Typical saving 80 t/year on a 1 t/h line; pay-back <6 months.

Technology snapshot

• Gravimetric batch blender: ±0.3 % recipe accuracy, colour change waste <5 kg
• High-efficiency barrier screw: melt temp -15 °C, 8 % energy saving, +20 % output
• Dual-piston hydraulic screen changer: 2-min screen swap, no line stop
• Melt gear pump: pressure swing ≤0.2 bar, gauge CV ≤1 %
• Three-roll stack (horizontal / inclined / vertical) independent servo driven: mirror, matte or embossed finish in one pass
• Silicone-oil coating unit: thermoforming release force -30 %, customer mould life +100 %
• Accumulator & tension control: 60 m/min automatic roll change, unmanned night shift possible

Quality Assurance & Certification

Our PP PE PS sheet production line meets international quality standards and incorporates advanced safety features, environmental compliance measures, and energy-efficient operation protocols to support sustainable manufacturing practices.

Technical Support & Services

Qingdao Xinrui Machinery provides comprehensive technical support including installation guidance, operator training, maintenance programs, and ongoing technical consultation to ensure optimal equipment performance and production success.
