Profitability in flexible PVC hose manufacturing demands a delicate balance. You must achieve high-speed continuous output while maintaining exceptionally strict dimensional tolerances. If your machinery falters, material waste quickly erodes profit margins. Standard setups often fall short of these commercial realities. They frequently struggle with air entrapment, polymer degradation, and inconsistent wall thickness when handling soft PVC and specialized plasticizers. These processing bottlenecks cause excessive scrap and severely limit overall plant efficiency.
This article provides a practical technical roadmap to solve these operational challenges. We will guide you through configuring and optimizing a high-yield machine setup. You will learn how to evaluate upstream handling, advanced cooling strategies, and inline quality control systems. By applying these methods, you can dramatically reduce overhead and minimize daily scrap. Read on to discover how to future-proof your operations and maximize equipment productivity.
Upgrading to gravimetric feeding and targeted heat zones can prevent material degradation and stabilize extrusion rates.
Transitioning from immersion water baths to spray cooling systems increases cooling efficiency by 20% to 40%.
Implementing inline ultrasonic thickness measurement enables closed-loop control, reducing scrap and ensuring continuous 24/7 production viability.
A stable pipe extrusion process begins long before the polymer enters the die. Upstream material handling heavily dictates the final product quality. You must maintain strict control over moisture and dosing. Without this control, process parameters will constantly fluctuate.
Moisture control is an absolute necessity for hygroscopic resins. When processing soft PVC compounds, moisture levels directly impact melt viscosity. You should target an absolute dry moisture content around 0.04% by weight. If moisture exceeds this threshold, you risk steam formation in the barrel. This steam causes surface defects and dimensional variations.
We recommend prioritizing gravimetric resin feeding systems over traditional volumetric feeders. Gravimetric feeders measure material by weight rather than volume. They ensure highly precise dosing of PVC compounds, stabilizers, and liquid plasticizers. This precision directly impacts dimensional stability. It eliminates the variations caused by changing bulk densities in the hopper. Gravimetric feeding prevents material surging, keeping output rates steady hour after hour.
Selecting the right extruder requires analyzing motor efficiency and temperature control. You need high-torque, variable-speed motors to manage energy consumption effectively. These advanced motors maintain steady throughput despite changing head pressures. A typical standard setup processing soft PVC should comfortably sustain a baseline output of 80 to 120 kg/hour. Variable-speed drives adjust power draw dynamically, optimizing your electrical usage without sacrificing speed.
Temperature monitoring is equally critical. Processors typically choose between standard thermocouples and Resistance Temperature Detectors (RTDs). Soft PVC formulations are highly heat-sensitive. You need reliable sensors to prevent accidental degradation.
Sensor Type | Precision Level | Durability | Best Use Case |
|---|---|---|---|
Standard Thermocouples | Moderate (acceptable for general zones) | Highly rugged, resistant to mechanical shock | Barrel heating zones where extreme precision is secondary to durability. |
RTDs (Resistance Temperature Detectors) | Extreme (down to 0.1°F precision) | Fragile, susceptible to vibration damage | Die heads and melt pumps requiring tight thermal control for soft PVC. |
We advise using rugged thermocouples along the main barrel and deploying highly accurate RTDs at the die head. This hybrid approach offers a practical baseline for monitoring flexible PVC melts.
Garden hoses rarely consist of a single polymer layer. Producing a high-quality fiber reinforced pipe demands precision co-extrusion. You must properly distribute the melt and guarantee robust adhesion between multiple layers.
Crosshead dies serve as the mechanical core of multi-layer hose production. These specialized dies allow the inner tube to pass through while an outer polymer layer extrudes over it. The mechanics rely on precise internal flow channels. Optimized die geometry prevents polymer stagnation. It carefully controls the residence time of heat-sensitive flexible PVC. If the flow path contains dead spots, the soft PVC will degrade and burn. This degradation causes black specks in your transparent garden hoses.
Proper die design also balances the melt pressure around the circumference. A well-designed manifold ensures uniform wall thickness. This uniform distribution prevents weak spots where the hose might eventually burst.
Poor layer bonding ruins the structural integrity of 2-layer or 3-layer garden hoses. The reinforcing fiber mesh sits directly between the inner and outer PVC layers. If these layers do not fuse perfectly, the hose will delaminate under standard water pressure.
To mitigate structural defects and prevent hose kinking, you must focus on the following adhesion strategies:
Synchronize extrusion speeds: The primary extruder and the co-extruder must operate in perfect harmony. Speed mismatches cause layer dragging and uneven thickness.
Optimize temperature profiling: The inner layer must retain enough surface heat to melt-fuse with the outer layer upon contact. Too cold, and the layers repel. Too hot, and the inner profile collapses.
Control fiber tension: The braiding or spiraling machine must apply the yarn at a consistent tension. Loose fibers create air pockets, which instantly ruin polymer adhesion.

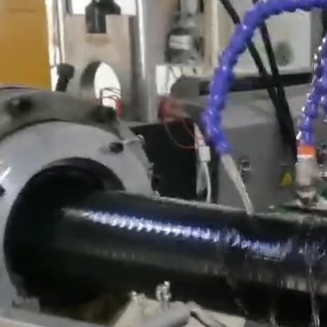

Your extruder sets the pace, but downstream equipment defines the product shape. Integrating an optimized PVC pipe extrusion line requires flawless calibration, rapid cooling, and gentle haul-off mechanics.
The space between the die exit and the cooling trough is called the air gap. Maintaining a zero-turbulence air gap is crucial. Even slight drafts from factory fans can cause the extrudate to sway. This swaying leads to uneven cooling and erratic shrinkage. For soft PVC, you must position the quench entry as close to the die as physically possible. This minimizes gravitational sagging and preserves the round profile.
Cooling soft PVC effectively is surprisingly difficult. The material acts as an insulator, trapping core heat. Standard operations use traditional immersion water baths. However, immersion vacuum sizing is prone to water-layer retention. The hose drags a boundary layer of warm water along its surface, severely slowing the cooling process.
Deploy spray cooling: High-efficiency spray cooling shatters the thermal boundary layer. Thousands of fine water droplets hit the hose surface and evaporate, pulling heat away rapidly. This method increases cooling efficiency by 20% to 40% compared to immersion baths.
Optimize quench temperatures: Shock-cooling soft PVC with ice-cold water causes surface stresses and product deformation. You should use a multi-zone cooling trough. Start with a warm quench zone (around 60°C) and gradually decrease the temperature. This gradient approach accelerates line speeds without compromising flexibility.
Maintain adequate trough length: Fast extrusion speeds require longer cooling zones. Ensure your factory floor plan accommodates sufficient cooling length to extract all core heat before winding.
Once cooled, the hose must be pulled down the line. We heavily emphasize the role of caterpillar haul-off units for this task. Using standard pinch rollers will easily crush the soft profile. Caterpillar haul-offs utilize wide, variable rubber belts. They distribute the pulling force over a larger surface area, preventing deformation.
Automated, dual-station winding systems keep the line moving. Continuous production runs fail if the winder creates bottlenecks. Dual-station systems automatically cut the hose and transfer the leading edge to an empty spool. This automation eliminates the need to slow down the extruder during spool changeovers.
Manual spot-checks belong in the past. To maintain a highly profitable pipe production line, you must implement automated quality control. Real-time data prevents scrap before it accumulates.
You must frame the necessity of abandoning manual spot-checks. Operators using calipers cannot react fast enough to line fluctuations. Instead, introduce dual-axis laser scanners immediately after the first cooling zone. These scanners measure outside diameter and ovality hundreds of times per second.
Pair laser scanners with ultrasonic testing devices. Ultrasonic sensors measure 4-quadrant wall thickness in real-time. This combination creates a powerful closed-loop system. When dimensional sensors detect a thickening wall, they automatically signal the haul-off unit. The haul-off speeds up slightly, stretching the hose back into tolerance. This closed-loop control happens instantly, maintaining tight tolerances without operator intervention.
Even optimized lines generate startup waste and edge trim. Integration of inline scrap recovery systems transforms this waste directly into usable material. A small granulator at the end of the line crushes rejected segments. An air-conveyor instantly feeds this regrind back into the main hopper at a controlled ratio.
Impact of Inline QC & Scrap Recovery on Production Metrics | |||
Production Strategy | Scrap Rate | Operator Intervention | Uptime Efficiency |
|---|---|---|---|
Manual Checks & Batch Processing | 5% - 8% | High (Constant adjustments) | 65% - 75% |
Closed-Loop QC & 24/5 Continuous | < 1.5% | Minimal (Automated alerts) | 90%+ |
Industry case data proves these realistic operational gains. Transitioning from short batch runs to continuous 24/5 production eliminates constant start-up and shutdown waste. You gain significant volume increases and enjoy massive unit cost reductions.
Choosing the right PVC garden hose machine goes far beyond comparing initial sticker prices. You must assess the long-term operational impact of the equipment. Hidden inefficiencies quickly consume your capital.
Smart buyers use a strict checklist for hidden operational costs. Do not let a low purchase price distract you from evaluating long-term power consumption. Insist on targeted heating zones and heavily insulated barrels to conserve electricity. Investigate the machine's water recycling loops. Efficient closed-loop water systems drastically lower your utility bills.
You must also audit maintenance intervals and spare parts availability. A cheap garden hose machine often utilizes proprietary, hard-to-source electronics. When a drive controller fails, waiting weeks for international shipping paralyzes your factory. Ensure your supplier uses standard, globally available PLC and motor brands.
Review your practical space requirements before finalizing an order. Standard continuous lines often require 900 to 1,200 square feet of straight, unobstructed floor space. If you lack this length, you cannot install adequate cooling troughs. Trying to compress the line footprint always results in overheated, deformed products.
Utility load planning is equally vital. A complete hose setup demands a substantial connected load, often hovering around 70 KW. You must verify that your facility’s electrical panels can support this continuous amperage without tripping breakers.
Assess the supplier's warranty structure in detail. A robust SLA indicates manufacturer confidence. Confirm they provide access to on-site commissioning engineers. Remote video assistance is rarely sufficient for tuning complex co-extrusion dies.
Finally, demand process dimension analysis during the Factory Acceptance Test (FAT). Do not accept an FAT that merely shows the machine turning on. The supplier must run your specific polymer formulation and prove they can hold your required tolerances continuously.
Optimizing a PVC extrusion setup requires moving significantly beyond raw output speed. You must focus intently on process stability, automated quality control, and highly efficient cooling mechanisms. Gravimetric feeding and precision dies eliminate upstream variables, while laser-guided haul-offs ensure strict dimensional accuracy. By implementing these advanced strategies, you protect your profit margins from excessive scrap.
We strongly encourage technical buyers to audit their current downstream bottlenecks immediately. Evaluate your cooling efficiency and document your true scrap rates. Identify exactly where your process falters before finalizing specifications for new machinery.
Reach out to prospective machinery manufacturers with specific demands. Request comprehensive operational expense calculations and insist on viewing test-run data using your specific polymer blends. Taking these decisive actions guarantees your next machinery investment delivers true factory floor success.
A: Standard lines designed for rigid PVC generally fail with soft hoses. Flexible PVC requires significantly different screw designs to mix liquid plasticizers gently. Additionally, you need specialized crosshead dies for fiber reinforcement and caterpillar haul-offs to prevent crushing the soft profile.
A: Spray cooling is undoubtedly the most effective method. It utilizes high-pressure nozzles to shatter the thermal boundary layer on the hose surface. This strategy provides a 20% to 40% efficiency gain over traditional immersion water baths, allowing for faster line speeds.
A: A high-yield production line typically requires between 900 and 1,200 square feet of linear space. This footprint accounts for the extruders, extended multi-zone cooling troughs, haul-off units, and large automatic dual-station coilers.
A: Air entrapment primarily occurs due to improper melt pressure, excess material moisture, or poor die geometry. You can fix it by drying hygroscopic additives, optimizing the crosshead die to eliminate dead spots, and adjusting barrel venting zones to release trapped gases.
