In high-volume decoration panel extrusion, the margin between profitability and excessive scrap relies entirely on process stability. You cannot afford inconsistent runs. Every slight variation impacts your bottom line. Producing rigid PVC panels containing high calcium carbonate (CaCO₃) filler ratios requires meticulous control over shear heat, melt pressure, and cooling rates. Minor parameter deviations lead directly to dimensional warping, surface defects, or inadequate fusion. For manufacturers evaluating a PVC ceiling panel machine, looking beyond basic output claims is critical. This guide breaks down verifiable mechanical parameters, component specifications, and process controls. We will show you how to guarantee repeatable panel quality and long-term equipment ROI.
Equipment Architecture: Conical twin-screw extruders are non-negotiable for rigid, high-filler PVC formulations due to superior melt homogenization.
Parameter Precision: Exacting control over die temperature (e.g., maintaining ~180°C) and melt pressure (~80 bar) prevents high-frequency defects like chatter marks and sharkskin.
Component Durability: Processing high CaCO₃ loads demands specialized metallurgy, such as 38CrMoALA screw treatments and hard chrome-plated die internals, to prevent premature wear.
Synchronization: Integrated PLC systems (e.g., Siemens, ABB) that synchronize extruder RPM with haul-off speeds (m/min) are essential for maintaining consistent panel thickness and profile geometry.
You should never evaluate a machine solely on maximum output (kg/h). This single metric is highly flawed. High raw output means nothing if rejection rates consume your profits. Consistent yield dictates true financial success. Maintaining tight dimensional stability directly protects your margins. Every wasted meter of profile drains material and energy resources.
Manufacturers face a significant high-filler challenge today. Modern wall panel extrusion heavily relies on calcium carbonate (CaCO₃). Filler ratios frequently reach up to 300 phr. Manufacturers push these limits to reduce raw material costs. However, heavy fillers radically alter polymer flow behavior. The compound becomes extremely abrasive. It also loses natural thermal stability rapidly.
Matching your machine to your specific formulation is mandatory. Processing high-filler rigid PVC typically requires a Resin K-Value between 65 and 70. This specific resin grade demands precise motor torque. If torque capacity is too low, the motor struggles. If you apply too much friction, thermal degradation occurs. Proper torque ensures adequate plasticization without burning the sensitive polymer.
Screw configuration determines your entire production foundation. Conical twin-screw extruders are mandatory for rigid PVC. They manage shear forces far better than single screws. Twin screws provide superior compounding for dry PVC powder blends. Single screws simply cannot generate the necessary homogenization for high-calcium formulas.
Comparison: Twin vs. Single Screw for Rigid PVC | ||
Feature | Conical Twin-Screw | Single-Screw |
|---|---|---|
Material Compatibility | Excellent for dry PVC powder and high CaCO₃ | Suited mostly for pre-compounded pellets |
Shear Management | Gentle, highly controllable shear | High friction, risk of polymer degradation |
Output Stability | Consistent pressure, exact volume output | Prone to surging at high RPMs |
Compression ratio directly impacts physical wear and fusion. You must balance internal shear forces perfectly. Too high of a compression ratio causes rapid polymer degradation. You will see black burn marks across the panel surface. Conversely, too low of a ratio causes incomplete fusion. This leaves the profile brittle and weak.
You must establish a strict barrel-to-die temperature gradient. Precise heating and cooling zones act as your primary defense against defects. Feed zones require lower temperatures to prevent premature melting. Heat should peak near the compression zone. Finally, temperatures must stabilize exactly as the melt enters the die.
This exact thermal control strictly dictates melt viscosity. PVC behaves uniquely under heat. It does not become a low-viscosity liquid. Instead, it forms a highly heat-sensitive, gel-like melt. If temperatures exceed safe limits, the compound releases hazardous HCl gas. The material then burns, ruining the entire extrusion run.
You must rigorously manage speed matching in meters per minute (m/min). The relationship between extrusion velocity and haul-off traction is highly critical. If the haul-off pulls faster than the die extrudes, walls become dangerously thin. If it pulls too slowly, material backs up and warps.
Proper equipment prevents physical deformation. We highly recommend dual-caterpillar haul-off units. These units must operate via closed-loop PLCs. Synchronization eliminates internal stress building inside the plastic. It also prevents panel tearing and uneven wall-thickness variations.
Quality analyses repeatedly show chatter marks as a leading industry defect. Operators also frequently battle sharkskin textures on finished profiles. These flaws instantly ruin a PVC ceiling panel. Data-backed solutions exist to eliminate these frustrating aesthetic issues.
You need a specific mechanical fix to stop these vibrations. Hard chrome-plated die internals provide the ultra-smooth surface required. Furthermore, strict parameter adherence is non-negotiable. You should target a 180°C die temperature. You must also maintain roughly 80 bar of melt pressure. This exact combination eliminates high-frequency surface vibrations.
Dimensional stability relies entirely on your calibration table. We emphasize using 304 stainless steel for these crucial components. Standard steel will rust quickly. 304 stainless steel strongly resists corrosion from cooling water. It also withstands the highly acidic PVC off-gassing produced during continuous runs.
Cooling rates dictate final profile geometry. You need controlled, multi-stage vacuum cooling tanks. Sudden temperature drops shock the plastic and induce warping. Gradual vacuum cooling ensures perfectly flat, interlocking geometries. This precision is absolute for standard 595x595mm drop ceilings or linear profiles.
High-calcium formulations act like liquid sandpaper inside your barrel. Combating this filler abrasiveness requires serious metallurgical upgrades. Standard steel screws will lose their tolerances within months. This quickly destroys your output consistency.
We specify bimetallic or 38CrMoALA nitrided screws and barrels. These specialized treatments harden the metal surfaces significantly. They maintain exacting flight tolerances over thousands of operating hours. Upgrading your metallurgy is the best way to protect your wall panel machine investment.
Industrial 4.0 has officially transformed PVC extrusion. Moving past manual dial controls is no longer optional. Operators need responsive, touchscreen PLC interfaces. Standardizing on tier-1 automation brands guarantees long-term reliability. Look for systems driven by B&R, Siemens, or Schneider.
Real-time melt pressure monitoring protects your tooling. The machine uses advanced melt sensors alongside continuous torque monitoring. When internal pressure spikes, the PLC automatically adjusts the screw speed. This automated reaction prevents sudden blowouts that destroy delicate die profiles. It removes human error from the equation.
Energy efficiency constraints heavily influence modern equipment design. Main motor power consumption represents a massive daily expense. Modern variable frequency drives (VFDs) optimize how motors draw power. Quality VFDs yield verifiable energy savings. You can typically expect 25–30% lower electricity usage without sacrificing any required extrusion torque.

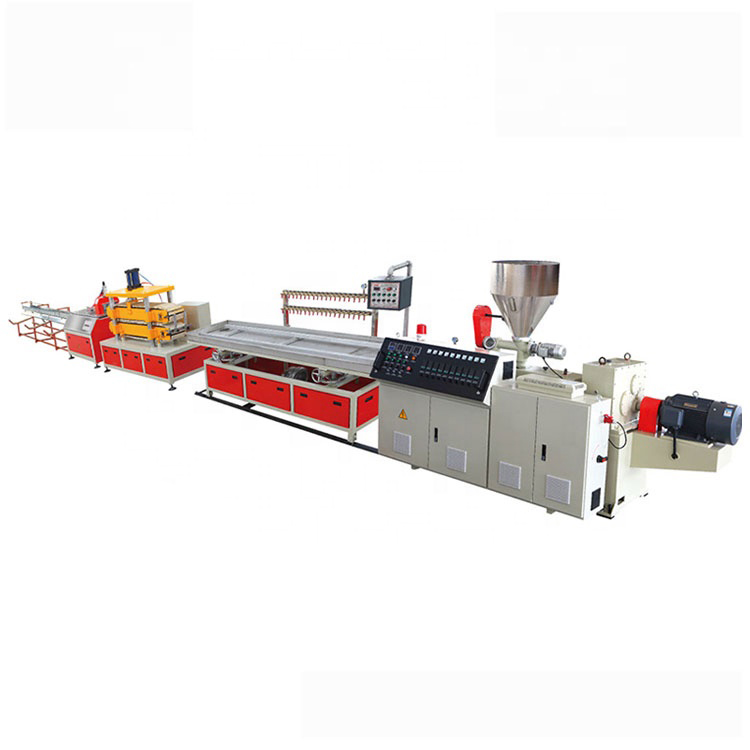

You must define your target geometries clearly before purchasing. Matching machine size to the required panel width is critical. A 65/132 extruder fits smaller profiles beautifully. An 80/156 extruder handles much larger volumes. You must decide if widths of 200mm, 300mm, or up to 600mm dominate your catalog. You should also evaluate whether a double-output die is viable for your factory.
Surface finishing integration requires careful planning. Extruded panels rarely ship bare. Ensure your main extrusion line integrates seamlessly alongside downstream modules. Standard finishing steps include inline hot stamping, lamination, or UV coating. The haul-off speeds must synchronize perfectly across all secondary finishing equipment.
Never skip the Factory Acceptance Testing (FAT). Buyers must demand rigorous pre-shipment testing. You should supply your exact PVC/CaCO₃ formulation to the manufacturer. Running your own powder proves real-world output claims. It also verifies strict panel interlocking tolerances before the machine ships.

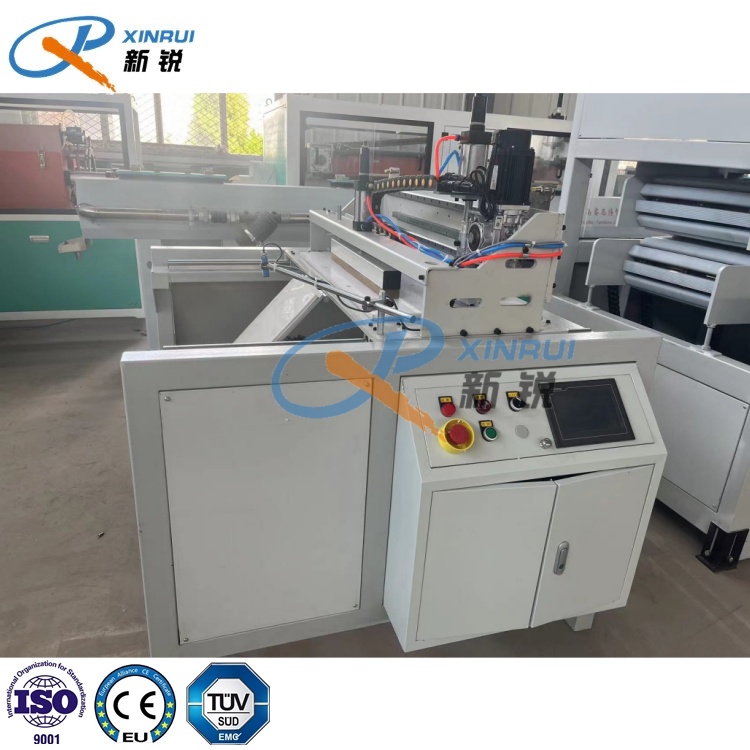

Dust management impacts safety and compliance. Cutting rigid PVC creates fine, hazardous particulate matter. Specifying dust-free cutting saws is highly recommended. These specialized cutters maintain a clean, compliant, and remarkably safe factory environment.
Pre-Purchase Technical Checklist Chart | ||
Verification Area | Key Requirement | Why It Matters |
|---|---|---|
Target Geometries | Match extruder size (65/132 vs 80/156) to panel width. | Prevents under-powering or over-spending on capacity. |
Surface Finishing | Inline syncing for hot stamping or UV coating. | Ensures continuous, bottleneck-free production. |
Testing (FAT) | Run custom CaCO₃ formulas prior to shipment. | Proves actual kg/h yield and interlocking accuracy. |
Dust Management | Integrated dust-free cutting saws. | Protects worker health and machine electronics. |
Sourcing a reliable production line is fundamentally about mitigating processing risks. High-quality output relies on matching metallurgical durability and advanced thermal controls precisely to your specific compound formulation. Every mechanical upgrade directly translates into higher daily yields.
Match the Metallurgy: Always demand 38CrMoALA or bimetallic screws when running high CaCO₃ filler loads.
Prioritize Automation: Insist on tier-1 PLC systems to synchronize your extruder RPM and haul-off speeds accurately.
Verify Before Shipping: Conduct comprehensive Factory Acceptance Testing using your own factory's dry powder blend.
Control the Die: Maintain exact 180°C temperatures and 80 bar pressures to eradicate surface chatter marks.
We strongly recommend prioritizing manufacturers who offer transparent technical specifications. Partnering with vendors utilizing recognized automation components ensures uptime. Prove defect-free production runs before finalizing any equipment investment.
A: Conical twin-screw extruders are the ideal choice. They dominate high-filler rigid PVC compounding because they manage shear forces beautifully. Twin screws provide exceptional melt homogenization for dry powder blends. Single screws simply lack the mixing capability required for dense, rigid profiles.
A: High CaCO₃ ratios up to 300 phr make the polymer highly abrasive and difficult to melt. Processing these formulas requires robust motor torque. You must select specialized nitrided screws, like 38CrMoALA, for extreme wear resistance. The machine also needs optimized compression ratios to prevent burning.
A: Chatter marks stem from improper melt pressure, incorrect die temperatures, or physical machine vibrations. The polymer slips and catches inside the die. You can resolve this by hitting specific pressure targets, typically around 80 bar. Applying hard-chrome plating to the internal die surfaces also eliminates this defect.
A: Discrepancies between the extruder output and the haul-off pull directly ruin the profile. If the haul-off pulls too quickly, it stretches the hot plastic, creating unacceptably thin walls. If it pulls too slowly, the profile buckles. You strictly need synchronized PLC controls to lock these speeds together.
